Height:
28mm
Width:
540mm
Length:
600mm
Weight:
7.8kg
Breaking load:
150kg

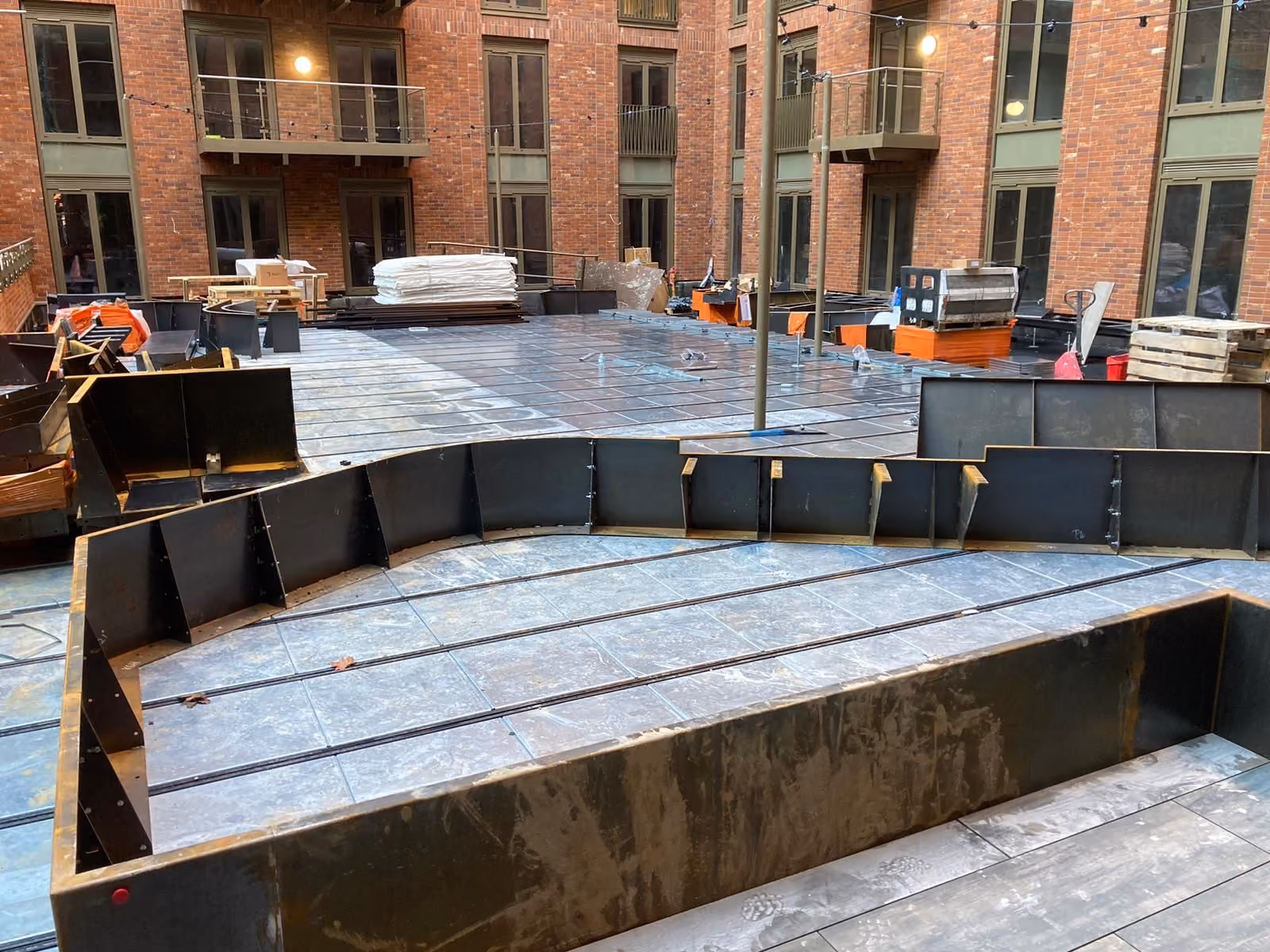

The Raaft Floor Structure Panel is a high-performance, steel surface support tray system that offers a sturdy and permeable platform for laying surfaces and elevating planters. It eliminates the need for solid construction like concrete, making it suitable for roof terraces, balconies, and other outdoor areas. The panels are manufactured from pre-galvanized steel or Corten to address wind uplift concerns. The 28mm option is to be installed on the 30mm Aluminium Joist.
Support structures made from fire and corrosion-resistant steel.
The Raaft terrace system is modular and can be configured to meet your requirements.
With lots of different options to choose from the system is fully customisable.
The Raaft terrace system is engineered for optimum drainage.
Manufactured to last for a solution that won't let you down.
With no fixtures required, each component comes together seamlessly for a quick installation.
Made from a corrosion-resistant steel that's built to last.
A robust structure that is more than strong enough for your terrace requirements.
Manufactured using sustainable materials with no compromise on quality.
No screws are required for construction.
